唐山molbox RFM Gas Flow Calibrator Kits-5144-美國福祿克FLUKE

High end gas flow calibration made simple

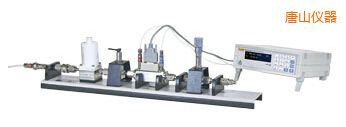

Fluke Calibration 5141, 5142 and 5144 molbox RFM gas flow calibrator kits feature molbox RFM and molbloc-L configurations optimized to cover a very wide workload combined with molstic-L and other interconnect hardware needed for a complete calibration system. Simply supply 90 psi of pure N2 or air to the system. An included regulator delivers a stable regulated flow to the molbloc. Downstream of the molbloc, an included metering valve allows you to regulate the mass flow value required for the DUT. It’s that simple; supply 90 psi gas upstream, tare the reading, and adjust the fine metering valve to deliver the desired mass flow rate with an accuracy of ± 0.5 % of reading. Fluke Calibration gas flow calibrator kits eliminate complication, but don’t compromise molbox/molbloc best in class performance.

· Flow ranges cover from 1 sccm to 50 slm

· ± 0.5 % of reading total one-year accuracy

· Measures mass and volume flow with user settable reference pressure and temperature conditions

· Reference standard is upstream of the device under test, eliminating cross contamination and expensive damage to the flow elements

· Integrated gas flow regulation and adjustment hardware

· Expandable to over 5000 slm with additional molbloc flow elements and control hardware

· Includes traceable calibration for operation in N2 and Air, with corrections for other gases

· Gas supply and test adapters included for 1/4 in tube, 1/4 in NPT and 1/4 in BSP

· Includes advanced functions such as totalize, average, hi/lo, deviation, on-board purge, leak test and tare, available from the front control panel or by RS-232 and IEEE-488 remote interfaces

A new standard in high end gas flow calibration

Fluke Calibration revolutionized high end gas flow calibration with the introduction of molbox/ molbloc mass flow standards. molbox/molbloc systems have replaced large, inflexible, error prone volumetric piston provers and bell provers with a compact, easy to use, versatile digital standard. molbox/molbloc systems are the standard of choice for high end calibration labs and mass flow device manufacturers around the world. Improvements offered by molbox/molbloc include:

· True mass flow calibration and traceability— no corrections from volumetric to mass

· Real-time digital mass flow indication, loaded with features—easily automated

· No moving parts—uninterrupted gas flow measurement, no fluctuations from piston stroke

· Flexibility to be positioned upstream or downstream— can calibrate at many line pressures

· Modular components allows future upgrade and expansion

· Very wide range with small footprint—no flow straightening hardware required

Whether your requirement is manual calibration of a simple variable area flow meter (rotameter) or fully automated calibration of a mass flow controller (MFC), molbox/molbloc systems offer the ideal solution. A molbox RFM with one or more molbloc flow elements can cover a wide range of flow calibration devices with total one-year measurement uncertainty of ± 0.5 % of reading. If your needs change, molbloc flow elements can be added, with models covering flows from 1 sccm to over 5000 slm (175 scfm). If better measurement uncertainty is needed, the same flow elements can be used with molbox1+ to achieve accuracy as good as ± 0.125 % of reading.

Measurement specifications
Gas calibration included	Nitrogen (N2), Air
Maximum working measurement line pressure	600 kPa (87 psi) absolute
Measurement range	<1sccm to 50 slm, depending on model. Flow ranges depend on test gas. Ranged indicated for N2 and Air.

型號	描述
5141-100	molbox RFM, molbloc 5E1-L 10 to 100 sccm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E1-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5141-1K	molbox RFM, molbloc 5E2-L 100 to 1,000 sccm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E2-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5141-10K	molbox RFM, molbloc 5E3-L 1 to 10 slm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E3-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5141-50K	molbox RFM, molbloc 3E4-L 5 to 50 slm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 3E4-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5142-1K	molbox RFM-M, molbloc 5E2-L 10 to 1,000 sccm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E2-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5142-10K	molbox RFM-M, molbloc 5E3-L 0.1 to 10 slm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E3-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5142-50K	molbox RFM-M, molbloc 3E4-L 0.5 to 50 slm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 3E4-L laminar flow element · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male
5144-50K	molbox RFM-M, molblocs 5E2-L and 3E4-L10 sccm to 50 slm Included: · molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual · molbloc 5E2-L and 3E4-L laminar flow elements · molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L · Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male

，，
