臨汾E-DWT Electronic Deadweight Tester Kits-6531 and 6532-美國FLUKE
A powerful, complete hydraulic pressure calibration system to cover a wide
workload
Fluke Calibration
improved the hydraulic pressure calibration process with the introduction of

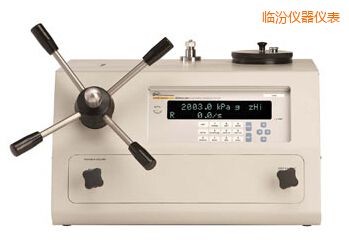

E-DWT-H electronic deadweight tester. E-DWT-H is an electronic calibrator
designed to deliver traditional hydraulic deadweight tester performance with
digital measurement features and convenience. Some improvements offered by
E-DWT-H include:
·
No weights to load and unload, transport
or send out for calibration
·
Provides real-time pressure indication
with no need to know and correct for local gravity or ambient temperature
·
No piston-cylinder changes
·
No significant sensitivity to level or
vibration
·
Able to set and read any pressure value
exactly, no minimum increment limited by smallest available masses; perfect for
applications that require setting a nominal pressure precisely on the device
under test and measuring it, such as analog gauge calibration
·
Operates in any unit of measure, switching
easily from one unit to the next
The E-DWT-H
is at home in metrology and calibration labs, on the production floor or in the
field. It can operate with a wide selection of test mediums, including Sebacate
calibration fluid, mineral oil, water and other liquids. ± 0.02 % of reading
total one-year measurement uncertainty rivals the best laboratory deadweight
testers.
The E-DWT-H is
used in the lab or instrument shop or can be taken into the field for
performing in-situ calibrations and tests. This hydraulic pressure calibration
system combines a high performance electronic reference pressure monitor and
manually operated pressure generation and control hardware in a single, compact
and rugged package. E-DWT-H offers the ease of use and precision of continuous,
real time electronic pressure measurement with the simple and direct pressure
control of high quality manual pressure hardware. E-DWT is named “electronic
deadweight tester” because it is intended as a lightweight and easy to use,
modern alternative to conventional piston-cylinder and weight based deadweight
testers.
The E-DWT’s
electronic reference pressure monitor is a special version of RPM4, designated
RPM4-E-DWT. RPM4-E-DWT can be configured with one or two high precision quartz
reference pressure transducers (Q-RPTs) with ranges from 7 MPa (1 000 psi) to
200 MPa (30 000 psi).
The RPM4-E-DWT is
controlled locally by the operator using its front panel display, keypad and
optional foot pedal or remotely by a computer using ASCII character command
strings over its RS-232 interface.
RPM4-E-DWT uses an
AutoRange feature to automatically select the most appropriate Q-RPT and to
optimize the E-DWT-H setup to cover the desired range of operation. When two
Q-RPTs are included, a half-turn valve isolates and protects the Lo Q-RPT from
high pressure when the Hi Q-RPT is in use. Visual and audible indicators assist
the operator in setting the shut off valve correctly.
The E-DWT-H
includes the hardware necessary to fill and prime the system under test and
generate and precisely adjust pressure up to 200 MPa (30 000 psi).
The E-DWT-H can be
powered with an optional battery/charger pack for use in locations where AC
power is not readily available.
High performance calibration made simple
Fluke Calibration
electronic deadweight tester kits feature E-DWT-H configurations combined with
the accessories needed for a complete calibration system. Model 6531 options
feature E-DWT-H configurations with a single quartz reference pressure
transducer (Q-RPT) to offer percent of reading performance from 10 % to 100 %
of device full scale. Model 6532 options feature an additional Q-RPT to
maximize workload coverage, with percent of reading performance from 1 % to 100
% of device full scale. An included vacuum fill kit allows the E-DWT to be
filled with your choice of compatible fluid, while eliminating problematic air
pockets from the test circuit. Also included is a test station adapter to mount
just about any pressure device to be tested without using PTFE tape or
wrenches. 6531 and 6532 kits provide all you need to perform high level
hydraulic pressure calibration right out of the box.
·
Pressure ranges available to 200 MPa
(30,000 psi)
·
± 0.02 % of reading total one-year
accuracy, 0.025 % for two years
·
Low torque variable volume allows for
pressure generation and control up to 200 MPa (30,000 psi) with minimal
physical effort
·
Built-in priming system to fill system
with test fluid and purge unwanted air to assure smooth operation
·
Unique test port design eliminates the
need for PTFE tape or wrenches. Adapters included for 1/8 in, 1/4 in, 3/8 in
and 1/2 in NPT, 1/8 in, 1/4 in, 3/8 in and 1/2 in BSP, M20 x 1.5 and M14 x
1.5
·
Compatible with a wide range of liquids,
including water. Vacuum fill kit included to fill the E-DWT with any compatible
test medium
·
AutoTest™, AutoRange, ready/not ready
indicator, onboard data capture and storage, overpressure alarm, RS-232 remote
interface and other advanced features to simplify testing, improve safety and
prevent calibration errors and damage to equipment
·
Optional foot switch accessory allows
hands-free data collection when running AutoTests
·
Rechargeable battery pack and transport
case options for field operation
|
General
|
|
Power
requirements
|
|
To RPM4-E-DWT:
|
12 V dc 1.2 A
|
|
To AC to DC power supply:
|
100 V ac to 240 V ac, 50/60 Hz
|
|
Temperature
range
|
|
Storage:
|
- 20 °C to 70 °C
|
|
Operating:
|
10 °C to 40 °C
|
|
Relative
Humidity
|
|
Storage:
|
0 % to 100 %
|
|
Operating:
|
0 % to 70 %
|
|
Weight
|
|
1 Q-RPT:
|
12 kg (26 lb) approximate
|
|
2 Q-RPT:
|
14 kg (30 lb) approximate
|
|
Dimensions
|
|
E-DWT footprint:
|
41.4 cm W x 37.1 cm D (16.3 in x 14.6
in)
|
|
E-DWT height:
|
26.9 cm (10.6 in), 33.6 cm (13.2 in) to
max variable volume handle height
|
|
Pressure range
|
Up to 200 MPa (30k psi), depending on
configuration
|
|
Operating medium
|
All 6531 and 6532 E-DWT Kits are shipped
dry, standard preparation. Can be filled with di-ethyl-hexyl sebacate,
silicon oils, propylene glycol, fully fluorinated liquids, partially
fluorinated liquids, isopropyl alcohol and distilled water or mineral oil.
|
|
Reservoir
capacity
|
300 cc (18 in3)
|
|
|
|
|
Variable volume
displacement
|
3 cc (0.18 in3), 200 MPa (30,000 psi)
maximum
|
|
Filling and
priming pump displacement
|
3.7 cc (0.23 in3)
|
|
TEST pressure
connection
|
DH500 female, 200 MPa (30k psi) maximum
working pressure. Adapters included for 1/8 in, 1/4 in, 3/8 in and 1/2 in
NPT, 1/8 in, 1/4 in, 3/8 in and 1/2 in BSP, M20 x 1.5 and M14 x 1.5. Adapter
maximum working pressure is 140 MPa (20k psi). Note: DH500 is a gland and
collar type fitting for 6 mm (1/4 in) coned and left hand threaded tubes
equivalent to AE F250C, HIP HF4, 9/16-18 UNF, etc.
|
|
Pressure Limits
|
|
Maximum Working
Pressure:
|
Range of RPM4-E-DWT monitor’s Hi Q-RPT
|
|
Maximum priming
pump pressure:
|
700 kPa (100 psi)
|
|
Maximum Working
Pressure:
|
with Lo Q-RPT selected: Range of
RPM4-E-DWT monitor’s Lo Q-RPT
|
|
Communication
ports:
|
RS-232 (COM1, COM2)
|
·
|
Pressure
measurement
|
|
Warm up time
|
15 minute temperature stabilization
recommended from cold power up
|
|
Normal Operating
Temperature Range
|
10 °C to 40 °C (50 °F to 104 °F)
|
|
Resolution
|
Default: 0.01 % of active range
User adjustable to 1 ppm of Q-RPT maximum or 10 ppm of active AutoRange,
whichever is larger
|
|
Precision1
|
± 0.018 % of reading or 0.0018 % of
Q-RPT span, whichever is greater
|
|
Predicted
Stability2
|
|
|
One year:
|
± 0.0075 % of reading
|
|
Two year:
|
± 0.015 % of reading
|
|
Measurement
Uncertainty3
|
|
|
One year:
|
± 0.02 % of reading or 0.002 % of Q-RPT
span, whichever is greater
|
|
Two year:
|
± 0.025 % of reading or 0.0025 % of
Q-RPT span, whichever is greater
|
·
1. Combined linearity, hysteresis, and
repeatability. Precision does not include stability or calibration reference
uncertainty.
2. Predicted Q-RPT measurement stability limit (k=2) assuming regular use of
AutoZero function and short term stability between rezeroing.
3. Maximum deviation of the Q-RPT indication from the true value of applied
pressure including precision, predicted stability with rezeroing, temperature
effect from 10 oC to 40 oC and calibration uncertainty (assumes calibration
reference uncertainty of ±0.005 % of reading, k=2), combined and expanded (k=2)
following the ISO “Guide to the Expression of Uncertainty in Measurement.
|
型號
|
描述
|
|
6531-7M
|
E-DWT-H A7M, 0.7 to 7 MPa, 100
to 1,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-14M
|
E-DWT-H A14M, 1.4 to 14 MPa,
200 to 2,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-20M
|
E-DWT-H A20M, 2 to 20 MPa, 300
to 3,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-40M
|
E-DWT-H A40M, 4 to 40 MPa, 600
to 6,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-70M
|
E-DWT-H A70M, 7 to 70 MPa,
1,000 to 10,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-140M
|
E-DWT-H A140M, 14 to 140 MPa,
2,000 to 20,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6531-200M
|
E-DWT-H A200M, 20 to 200 MPa,
3,000 to 30,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6532-70M
|
E-DWT-H A70M/A7M, 0.7 to 70
MPa, 100 to 10,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6532-140M
|
E-DWT-H A140M/A14M, 1.4 to 140
MPa, 200 to 20,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
|
6532-200M
|
E-DWT-H A200M/A20M, 2 to 200
MPa, 300 to 30,000 psi
Includes:
· E-DWT-H
Electronic Deadweight Tester with power supply and operating manual
· Vacuum
liquid fill kit
· Test
station quick-mount fitting
· NPT
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· BSP
adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
· Metric
adapters: M20 x 1.5 and M14 x 1.5
|
通用配件:
|
配件
|
描述
|
|
Case
|
加固且可重復使用的模制裝運外殼（部件號3338097）
|
|
電池組/充電器
|
帶有充電器的12 VDC電池（部件號3071049）
|
|
腳踏開關
|
遠程[ENTER]腳踏開關（部件號3070940）
|
|
COMPASS
for Pressure
|
自動執行測試、數據采集、報告與設備資產管理的軟件
|
，，
绂忕鍏嬪叕鍙告垚绔嬩簬1948骞达紝鏄笘鐣岀數瀛愭祴璇曞伐鍏风殑棰嗗鑰咃紝澶氬勾鏉ワ紝鍒涢€犲拰鍙戝睍浜嗕竴涓壒瀹氱殑鎶€鏈競鍦猴紝涓哄悇涓伐涓氶鍩熸彁渚涗簡浼樿川鐨勬祴閲忓拰妫€娴嬫晠闅滀骇鍝併€傜绂勫厠鐨勭敤鎴锋兜鐩栭潰骞匡紝鍖呮嫭鎶€鏈汉鍛樸€佸伐绋嬪笀銆佽閲忎汉鍛樼瓑绛夛紝浠栦滑鍒╃敤绂忕鍏嬬殑娴嬭瘯宸ュ叿杩涜宸ヤ笟鐢ㄧ數銆佺數鍣ㄨ澶囧拰杩囩▼鏍″噯鐨勫畨瑁呫€佹晠闅滆瘖鏂拰绠＄悊锛屽苟浠ユ鎺у埗璐ㄩ噺銆備粠宸ヤ笟鎺у埗绯荤粺鐨勫畨瑁呰皟璇曞埌杩囩▼浠〃鐨勬牎楠岀淮鎶わ紝浠庡疄楠屽绮惧瘑娴嬮噺鍒拌绠楁満缃戠粶鐨勬晠闅滆瘖鏂紝绂忕鍏嬬殑浜у搧甯姪鍚勮鍚勪笟鐨勪笟鍔￠珮鏁堣繍杞拰涓嶆柇鍙戝睍銆傚湪杩囧幓鐨勪簲骞翠腑锛岀绂勫厠鐨勬祴璇曞伐鍏锋洿鏄薄鑾锋畩鑽ｏ紝璧㈠緱浜嗐€婃祴璇曚笌娴嬮噺涓栫晫銆嬫渶浣虫祴璇曞伐鍏峰銆併€婃帶鍒跺伐绋嬨€嬪伐绋嬪笀閫夋嫨濂栫瓑50澶氫釜骞村害浜у搧濂栭」锛屼互鍏剁簿鍑嗐€佽€愮敤銆佸畨鍏ㄣ€佸垱鏂扮殑鐗规€ц€屽鍙楀叏鐞冪敤鎴疯禐瑾夈€�
鎮ㄦ槸鍚︽媴蹇冮€夊瀷閿欒瀵艰嚧鏃犳硶浣跨敤锛�
鎮ㄦ槸鍚︽媴蹇冧华鍣ㄨ川閲忎笉浣宠€岄€€鎹㈣揣閬亣楹荤儲锛�
鎮ㄦ槸鍚︽媴蹇冧华鍣ㄤ娇鐢ㄤ簡涓嶉暱鐨勬椂闂村氨鏃犳硶缁х画浣跨敤鑰岃鍙﹀鎶曡祫璐拱锛�
涓滄柟鍢変华鐙鎻愪緵100%闆堕闄╂壙璇猴紝淇濊瘉璐拱鍚庝笉婊℃剰鍏嶈垂閫€鎹㈣揣銆傚彧瑕侀€氳繃鎴戜滑鐨勯攢鍞汉鍛樿繘琛屽瀷鍙风殑閫夋嫨锛屼竴鏃﹁喘涔板悗浣跨敤涓嶆弧鎰忥紝鎴戜滑灏嗙珛鍗虫棤鏉′欢浜堜互鎹㈣揣锛屾垨100%鍏ㄩ閫€杩樿揣娆俱€�
鈼囦笢鏂瑰槈浠垚绔嬩簬2003骞达紝涓昏浠庝簨宸ヤ笟妫€娴嬩华鍣ㄧ爺鍙戠敓浜у拰閿€鍞紝鎻愪緵浠櫒閫夊瀷+閰嶉€�+瀹夎璋冭瘯+鍩硅鏈嶅姟銆�
鈼囧凡鏈�2涓囧瀹㈡埛瑙佽瘉锛屽厛鍚庝负120涓涓氳秴杩�20000瀹朵紒涓氫緵搴斾华鍣紝寰楀埌浼楀浼佷笟銆佺敤鎴风殑骞挎硾璁ゅ彲涓庤禐鎵€�
鈼囦笢鏂瑰槈浠负鍥藉唴鍞竴娉ㄥ唽浠櫒鏈嶅姟鍝佺墝锛屾敞鍐屼簡搴旂敤浜庝华鍣ㄤ华琛ㄩ攢鍞鍩熺殑鈥滀笢鏂瑰槈浠€濆搧鐗屻€�
鈼囨垜浠笉浠呬负鎮ㄦ彁渚涢珮璐ㄩ噺銆侀珮鎬ц兘鐨勬娴嬩华鍣紝鍙﹀杩樻湁缁忛獙涓板瘜銆佺淮淇妧鏈珮鐨勫洟闃熶负鎮ㄥ厤璐瑰敭鍚庢湇鍔℃敮鎸併€�
|
